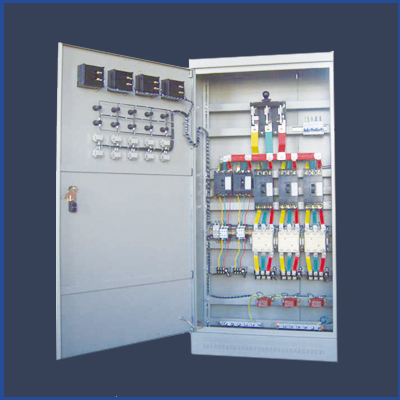

1. The Rittal cabinet can be divided into three series structurally: ES cabinet (50 fold profile cabinet), PS cabinet (9 fold profile cabinet), and TS cabinet (16 fold profile cabinet). The main feature of Rittal cabinet is that it adopts a profile frame structure. The frame of the cabinet is welded first, and then the board, bottom plate, side plate, door plate, and installation plate are fixed to the frame with screws. This advantage is that the product has a modular structure and is easy to use;

2.產品美觀，rittal機柜從工業品的使用和外觀上都追求的理念，從鈑金結構設計和附件的搭配使用也十分合理科學，形成了標準化的配套設計;

2. The product is beautiful, and Rittal cabinets pursue the concept of perfection in both industrial use and appearance. The design of sheet metal structures and the use of accessories are also very reasonable and scientific, forming a standardized supporting design;

3.使用方便，內部的縱梁、立柱、橫梁、走線條及本身的模塑化孔的設計使得用戶安裝都顯得得心應手、方便自如，配上日光燈和行程開關，柜門關上燈滅，柜門開燈亮，使得檢修十分方便;

3. Easy to use, the design of the internal longitudinal beams, columns, crossbeams, running lines, and its own molded holes makes installation easy and convenient for users. Equipped with fluorescent lights and travel switches, the cabinet door closes and the light turns off, while the cabinet door opens and the light turns on, making maintenance very convenient;

4.結實耐用、可靠，威圖柜框架結構使得結構穩固，單柜大可承重2000KG，不懼安裝任何笨重器件;

4. Durable, safe and reliable, the Rittal cabinet frame structure makes the structure stable, and a single cabinet can bear a weight of 2000KG without fear of installing any bulky components;

5.同時仿威圖機柜從材料上分別碳鋼和不銹鋼，料厚默認為門板2.0mm，安裝板2.5mm，柜體1.5mm;仿威圖機柜

5. At the same time, the imitation Rittal cabinet is made of carbon steel and stainless steel, with a default material thickness of 2.0mm for the door panel, 2.5mm for the installation plate, and 1.5mm for the cabinet body; Mimic Rittal cabinet

6.碳鋼的表面處理默認為噴塑處理，噴塑前做磷化底涂處理，顏色為RAL7035，不銹鋼的表面處理默認工藝為拉絲處理;

6. The default surface treatment for carbon steel is spray coating, with a phosphating primer treatment before spray coating, and the color is RAL7035. The default surface treatment process for stainless steel is wire drawing treatment;

而一般柜子為冷軋板或者鍍鋅板焊接，對板材要求和加工的平整度，配件選擇都沒有嚴格要求，結構也多半為固定焊接處理，使用起來不靈活。當然也相對便宜很多。

However, general cabinets are made of cold-rolled or galvanized sheet welded, and there are no strict requirements for the flatness of the plate and processing, as well as for the selection of accessories. The structure is mostly fixed and welded, making it difficult to use flexibly. Of course, the price is also relatively much cheaper.

仿威圖機柜的意義不是冒牌，而是根據rittal公司的工藝去仿制，而國內有的廠家做出的仿威圖機柜在工藝水平上已經趕上或接近威圖rittal，同時在貨期、服務、上相比rittal公司有很大的優勢。

The significance of imitating Rittal cabinets is not to counterfeit them, but to imitate them according to Rittal's technology. Some domestic manufacturers have already caught up with or approached Rittal's imitation Rittal cabinets in terms of technology level, and have significant advantages over Rittal in terms of delivery time, service, and price.

另外在選型仿威圖機柜過程中，有些業主硬性要求IP56、IP66防護等級，作為仿威圖機柜本身來說，具有較高的防護等級，因?yàn)闄C(jī)柜門的密封條都是采用PU發泡工藝，我們則選用的是進口AB料，確保密封條飽滿、富有彈性，不易變形等特征。鎖具附件采用生久產品，確保產品質量。但是如果項目用于戶外、船舶等情況下僅僅依靠柜體本身防護等級還不夠，需要我們加配防雨棚，防止較大雨水沖擊柜體，從而很好地從仿威圖機柜源頭解決問題。

In addition, during the selection process of the imitation Rittal cabinet, some owners have mandatory requirements for IP56 and IP66 protection levels. As for the imitation Rittal cabinet itself, it has a higher protection level because the sealing strip of the cabinet door is made of PU foam technology. We choose imported AB material to ensure that the sealing strip is full, elastic, and not easily deformed. The lock accessories are made of Shengjiu brand products to ensure product quality. However, if the project is used outdoors, on ships, and other occasions, relying solely on the protection level of the cabinet itself is not enough. We need to add a rain shelter to prevent heavy rain from impacting the cabinet, so as to effectively solve the problem from the source of the imitation Rittal cabinet.
